Solution for Integrating Underground Eyewash Stations with Factory Hot Water Systems

I. Key Integration Principles

1. Dedicated Piping Networks
   • Underground eyewash stations must use independent pipelines separate from the main factory hot water system to prevent pressure fluctuations or supply interruptions.
   • Piping materials should be corrosion-resistant (e.g., 304 stainless steel or UPVC) to avoid chemical leaching when exposed to hot water.
2. Freeze Protection & Drainage Systems
   • Install water inlets and freeze-prevention devices below the frost line.
   • Use automatic drain valves (e.g., in buried self-draining eyewash models like BD-560W) to empty residual water after use, preventing freezing.
   • Example: The BD-560W stainless steel buried combination eyewash operates from -15°C to 45°C and auto-drains via a foot pedal.
3. Temperature Control
   • Maintain eyewash water temperature between 15°C and 37°C.
   • If factory hot water exceeds 37°C, install thermostatic mixing valves to blend cold water.
   • Electric trace heating systems can maintain temperatures in sub-zero environments.

II. Detailed Integration Plan

1. Piping Layout & Connections
   • Main Supply Line: Branch a dedicated hot water line from the factory system to the eyewash station.
   • Loop Configuration: Use a ring-shaped pipeline design for multi-point redundancy, ensuring continuous supply even if one section fails.
   • Insulation: Wrap above-ground pipes with thermal insulation (e.g., rubber foam) to minimize heat loss.
2. Freeze Protection & Drainage
   • Auto-Drain Valves: Install below frost line to empty pipes post-use.
   • Manual Backup: Provide a secondary manual drain valve near the station.
   • Electric Trace Heating: Deploy heating cables in extreme cold regions to prevent freezing.
3. Temperature & Pressure Regulation
   • Thermostatic Mixing Valves: Adjust hot/cold water ratios to stabilize output temperature.
   • Pressure Reducers: Maintain inlet pressure at 0.2–0.4 MPa to avoid damaging eyewash nozzles.
   • Flow Meters: Monitor discharge rates (standard: 12–18 L/min) to meet emergency requirements.

III. Compliance & Safety Standards

1. Regulatory Adherence
   • Follow GBZ1-2010 (China’s Hygiene Standards for Industrial Enterprises) Article 8.3:
     “Workplaces with potential chemical burns must install uninterrupted drench showers and eyewash facilities.”
   • Align with ANSI Z358.1 (U.S. Standard) for eyewash performance criteria.
2. Emergency Protocols
   • Signage: Place visible标识 (signage) within a 15-meter radius of the station.
   • Maintenance Logs: Document weekly tests for temperature, pressure, and drainage functionality.
   • Training: Train personnel on activation procedures, flushing duration (≥15 minutes), and reset protocols.

IV. Recommended Equipment & Case Studies

1. Equipment Options

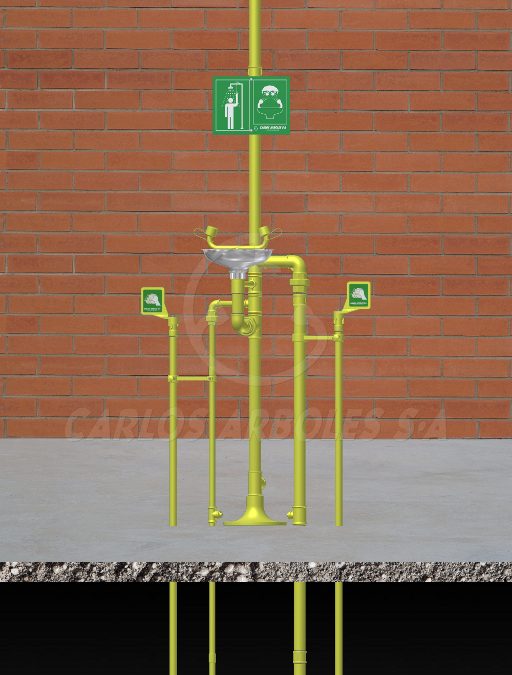

   • Buried Dual-Lever Eyewash (e.g., BH30-6012): Combines eyewash and shower functions for fixed installations.
   • Electric Trace-Heated Eyewash (e.g., BH30-1062G): Suitable for sub-zero climates with integrated heating.
   • Diaphragm Pressure Tank Eyewash: Provides emergency water during supply failures.
2. Case Examples
   • Chemical Plant (China): Used a ring-shaped pipeline with auto-drain valves and trace heating, achieving reliable operation at -20°C.
   • Pharmaceutical Facility: Reduced incoming hot water from 60°C to 30°C via mixing valves, meeting eyewash requirements.

---

Key Takeaways:

• Prioritize independent piping and freeze protection for reliability.
• Ensure strict temperature/pressure control to comply with safety standards.
• Select certified equipment tailored to climate and operational needs.

This solution balances regulatory compliance, operational resilience, and cost-efficiency for industrial settings.
