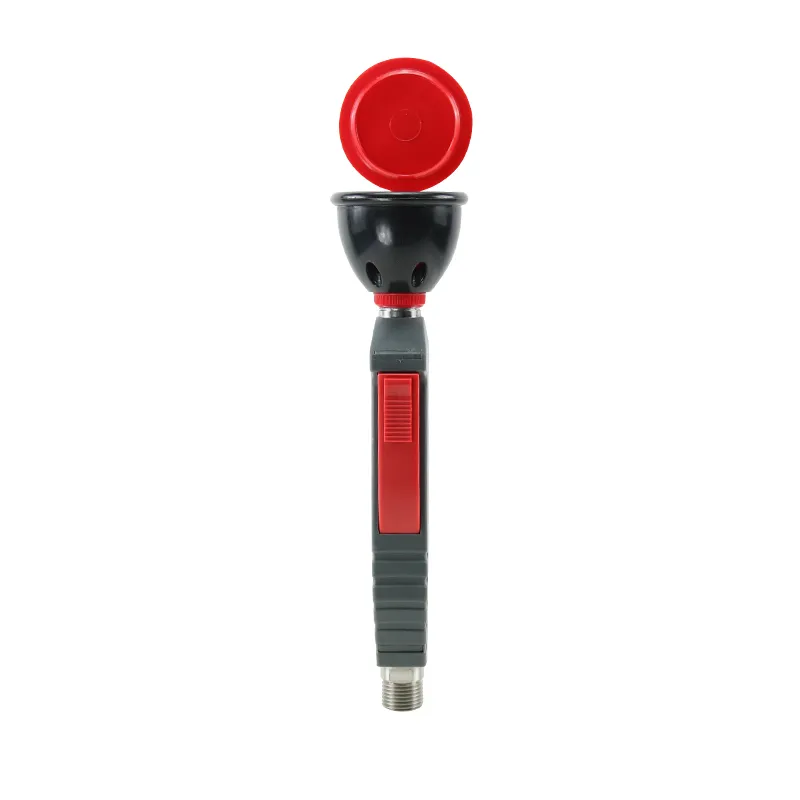

BTT11 desktop single-port eyewash station

Production Standard: US ANSI Z358.1-2014.

● Function: Eyewash.

● Nominal Pressure: 0.6 MPa.

● Operating Pressure: 0.2-0.4 MPa.

● Eyewash Flow Rate: ≥11.4 L/min.

● Inlet Size: G1/2 internal thread.

● Drain Size: Discharge anywhere.

● Gross Weight: 1 kg.

● Net Weight: 0.7 kg.

● Packaging Dimensions: L*W*H = 340*170*80 mm.

● Product Dimensions: L*W*H = 260*80*80 mm.

● Medium: Domestic water at room temperature that meets hygienic standards.

● Material: Inlet pipe is made of SS304 stainless steel, and the outer shell is made of non-combustible PP die-cast, one-piece molding. The stainless steel braided water supply hose is coated with a PVC protective layer to prevent wear and tear,

extending its service life and offering excellent resistance to oils, acids, alkalis, and hydrochloric acid solutions.

●Product Features: Equipped with a 1.5-meter hose, both ends of the hose are made of 304 stainless steel. The hose is coated with a PVC film to prevent damage to the user's hands due to wire breakage.

It can be moved within a 1.5-meter range. To use, remove the eyewash unit from its fixed base and press the on/off handle. Clean water automatically sprays from the eyewash nozzle, aiming at the affected area for cleaning.

The nozzle is equipped with a dust cap that automatically opens with the water flow and reduces the brief high water pressure during sudden opening, preventing secondary damage to the affected area.

●This product is suitable for use in areas with ambient temperatures above 0°C. When used in environments below 0°C, ensure the pipes are frost-proof and insulated.

●Applicable Applications: Widely used in nuclear power, power plants, pharmaceuticals, medical treatment, chemicals, petroleum, electronics, smelting, printing and dyeing, education, and scientific research units, industries, and fields.
