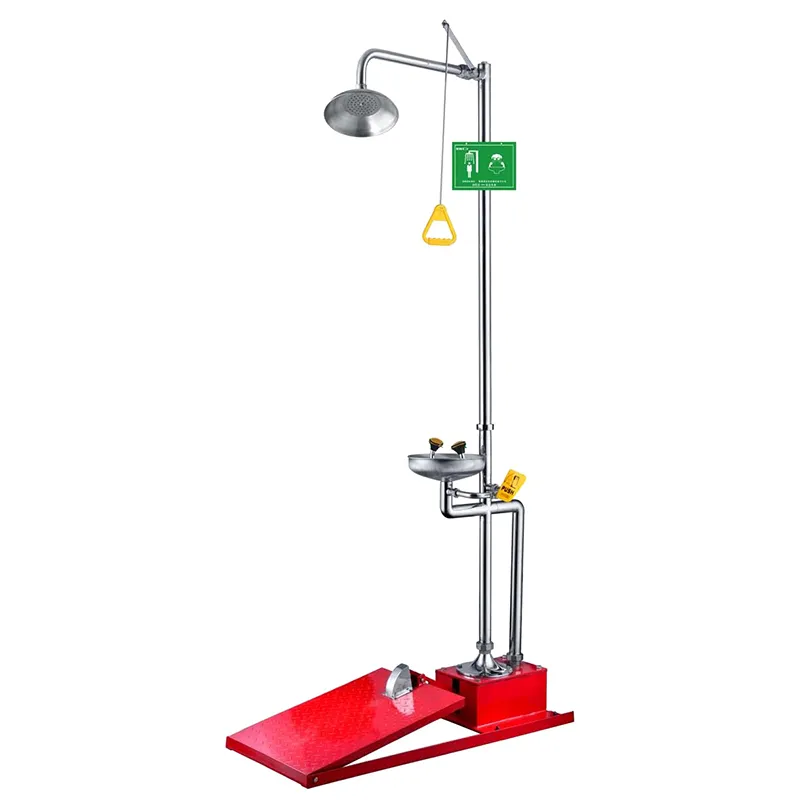

SW6610-ZP Large Pedal Automatic Emptying Eyewash Station
Installation Features: Union-style pipe connection for quick assembly and disassembly
BTT11 desktop single-port eyewash station
BTL12 vertical eyewash station (linked flip basin)
BTG31 wall-mounted eyewash station (small basin)
Combined shower and eyewash device with flip cover
BTL13 vertical eyewash station (linked flip basin)
BTF91 Electric Heated Emergency Shower Eyewash
ABS combined eyewash sprayer
ABS-composite eyewash station
Composite flip-up eyewash station
Electric heating composite eyewash station
Material: SS304
● Surface Finish: Fine Polish / High-Gloss Epoxy Coating
● Installation Features: Union-style pipe connection for quick assembly and disassembly
● Functions: Shower + Eyewash + Automatic Drain
● Suitable for: Northern cold regions
● On/Off Ball Valve: Two-piece quick-opening ball valve + custom three-way ball valve
● Overhead Spray: Spin-on curling design, 250mm diameter
● Pipe Diameter: 48mm
● Eyewash Basin: 300mm straight-edge design to collect water and prevent splashing
● Dust Cover: Integrated into the main body, difficult to lose
● Eyewash Head Features: Patented design with built-in dual flow control valve
● Water Inlet Size: 1-1/4" British internal thread
● Drain Outlet Size: 1" British external thread
● Water Inlet Height: 105mm
● Drain outlet height: 105mm
● Eyewash nozzle spacing: 170mm
